Dual Laminate Products: Superior Corrosion & Chemical Resistance

In demanding industrial environments, the selection of materials for process equipment is paramount to operational integrity and longevity. This comprehensive guide delves into Dual Laminate Products, a cutting-edge solution engineered to withstand extreme corrosive and high-temperature conditions. Combining the superior chemical resistance of thermoplastics with the structural strength of Fiber Reinforced Polymer (FRP), these products represent an advanced material science achievement critical for industries where traditional materials fail.

We will explore the technical intricacies, diverse applications, and profound advantages that make dual laminates indispensable for B2B decision-makers and engineering professionals seeking robust, long-term asset solutions.

Industry Trends Driving Adoption of Dual Laminate Products

The global industrial landscape is increasingly characterized by stringent environmental regulations, a relentless pursuit of operational efficiency, and a heightened focus on asset lifespan and safety. These factors significantly influence material selection for critical infrastructure. For applications involving highly corrosive chemicals or elevated temperatures, conventional metallic alloys or standalone FRP often present limitations.

Key trends accelerating the adoption of Dual Laminate Products include:

Escalating Corrosion Challenges: Industries like chemical processing, pulp & paper, mining, and power generation continually face aggressive chemical environments requiring superior corrosion protection.
Demand for Extended Service Life: Companies are prioritizing solutions that offer significantly longer operational lifespans to reduce maintenance costs, minimize downtime, and lower total cost of ownership (TCO).
Sustainability and Safety: The inherent resistance of dual laminates to leakage and environmental degradation contributes to safer operations and reduced ecological footprints.
Technological Advancements: Continuous improvements in thermoplastic liners (e.g., PVDF, ECTFE, PFA) and FRP resin systems enhance the performance envelope of dual laminates, allowing them to tackle even more severe conditions.

The market for advanced corrosion-resistant materials is projected to grow steadily, with dual laminates playing a pivotal role in meeting these evolving industrial demands by offering an optimized balance of chemical inertness and structural integrity.

Manufacturing Process Flow for Dual Laminate Products

The fabrication of Dual Laminate Products is a specialized process that meticulously combines two distinct material types to achieve a synergistic outcome. Unlike typical FRP manufacturing, it involves the precise integration of a thermoplastic liner with a robust FRP structural shell. The primary manufacturing steps are as follows:

Step 1: Thermoplastic Liner Fabrication

The inner corrosion barrier, typically made from PVC, CPVC, PP, PVDF, ECTFE, or FEP, is first fabricated into the desired shape (e.g., a tank shell, pipe spool). This involves precise cutting, forming, and welding of thermoplastic sheets or pipes using techniques such as hot gas welding or extrusion welding. The integrity of these welds is critical and often spark-tested to ensure pinhole-free surfaces.

Step 2: Liner Preparation and Bonding Layer Application

Once the thermoplastic liner is formed, its exterior surface is prepared to facilitate a strong mechanical and chemical bond with the FRP structural layer. This often involves mechanical roughening or chemical etching. A resin-rich "chop strand mat" layer, compatible with both the thermoplastic and the structural FRP resin, is then applied to the liner. This creates an interface for adhesion and stress distribution.

Step 3: FRP Structural Layer Application

The main structural integrity is provided by the FRP layer, which is typically applied using filament winding, hand lay-up, or spray-up techniques directly over the prepared thermoplastic liner. Vinylester or Isophthalic polyester resins, reinforced with E-glass fibers, are commonly used. The number of layers and orientation of fibers are engineered to meet specific mechanical strength requirements (pressure, vacuum, external loads) according to standards like ASME RTP-1 or ASTM D3299.

Step 4: Curing and Post-Curing

After the FRP layers are applied, the composite is allowed to cure at ambient temperature or under controlled heating (post-curing). Post-curing enhances the resin's cross-linking, improving mechanical properties and chemical resistance. Temperature profiles are carefully managed to prevent thermal stress on the thermoplastic liner.

Step 5: Quality Control and Testing

Rigorous testing is performed throughout and after fabrication. This includes visual inspections, dimensional checks, Barcol hardness testing for FRP cure, and spark testing of the thermoplastic liner for pinholes or discontinuities. Hydrostatic or pneumatic pressure testing ensures structural integrity and leak-tightness in accordance with project specifications and international standards like ISO 9001 and ANSI/AWWA C950.

This meticulous process ensures that the final product, a Dual Laminate Products vessel or pipe, delivers exceptional corrosion resistance, high structural strength, and a long service life, typically exceeding 20-30 years in severe applications.

Dual Laminate Products: Superior Corrosion & Chemical Resistance

Figure 1: Cross-section of a Dual Laminate structure, illustrating the distinct liner and FRP layers.

Technical Specifications of Dual Laminate Products

The performance capabilities of Dual Laminate Products are defined by a combination of the chosen thermoplastic liner and the FRP composite structure. These specifications are engineered to meet precise operational requirements, ensuring optimal performance and safety.

Typical Product Specification Table

Parameter	Description/Range	Typical Value/Material
Liner Materials	Inner corrosion barrier	PVC, CPVC, PP, PVDF, ECTFE, FEP
FRP Resin Types	Structural reinforcement	Isophthalic Polyester, Vinylester (Derakane, Hetron)
Operating Temperature Range	Dependent on liner & resin	-40°C to +180°C (e.g., PVDF up to 140°C, ECTFE up to 160°C)
Pressure Rating	Internal & External (Vacuum)	Full vacuum to 15 barg (up to 150 psi), higher for specific designs
Chemical Resistance	pH range, specific chemicals	pH 0-14 (acids, alkalis, solvents); specific compatibility charts must be consulted
Tensile Strength (FRP)	Ultimate strength, axial/hoop	100-350 MPa (ASTM D638, D2290)
Flexural Strength (FRP)	Resistance to bending	150-400 MPa (ASTM D790)
Density	Material weight per volume	1.6 - 1.9 g/cm³ (significantly lighter than alloys)
Thermal Conductivity	Ability to conduct heat	0.2-0.4 W/m·K (excellent insulation properties)

Note: Specific values vary based on design, materials, and manufacturing methods. Compliance with standards such as ASTM D3299, ASME RTP-1, and ISO 9001 ensures reliability.

Application Scenarios for Dual Laminate Products

The unique combination of corrosion resistance and structural strength makes Dual Laminate Products ideal for a diverse array of demanding industrial applications where traditional materials often fall short. They are extensively utilized in critical infrastructure requiring long-term reliability in harsh chemical environments.

Chemical Processing Industry: For handling aggressive chemicals such as hydrochloric acid (HCl), sulfuric acid (H2SO4), nitric acid (HNO3), chlorine, and various solvents. Applications include storage tanks, reactors, scrubbers, absorption towers, distillation columns, and piping systems. Their inertness ensures product purity and prevents equipment degradation.
Pulp and Paper Industry: Crucial in bleaching stages involving chlorine dioxide (ClO2), sodium hypochlorite, and other corrosive chemicals. Dual laminate tanks, pipes, and process vessels withstand the corrosive attack, extending equipment life significantly compared to stainless steel.
Mining and Metallurgy: Used in hydrometallurgical processes such as leaching tanks, solvent extraction mixer-settlers, and electrowinning cells, where strong acids (e.g., sulfuric acid) and abrasive slurries are present. Their resistance to both corrosion and erosion is a major advantage.
Water and Wastewater Treatment: For storing and processing corrosive chemicals like sodium hypochlorite, ferric chloride, and various acids used in disinfection, coagulation, and pH adjustment. Dual laminate clarifiers, filtration vessels, and chemical storage tanks offer long-term, low-maintenance solutions.
Power Generation (Flue Gas Desulfurization - FGD): Critical components in wet scrubbers designed to remove sulfur dioxide (SO2) from exhaust flue gases. Dual laminate absorbers, ducts, and stacks withstand the highly acidic condensate and corrosive slurries generated in these systems.
Pharmaceutical Industry: Where high purity and resistance to aggressive cleaning agents or process chemicals are required, especially for bulk chemical synthesis or solvent recovery.

In these scenarios, Dual Laminate Products provide robust solutions that ensure operational continuity, reduce maintenance burdens, and enhance safety for personnel and the environment.

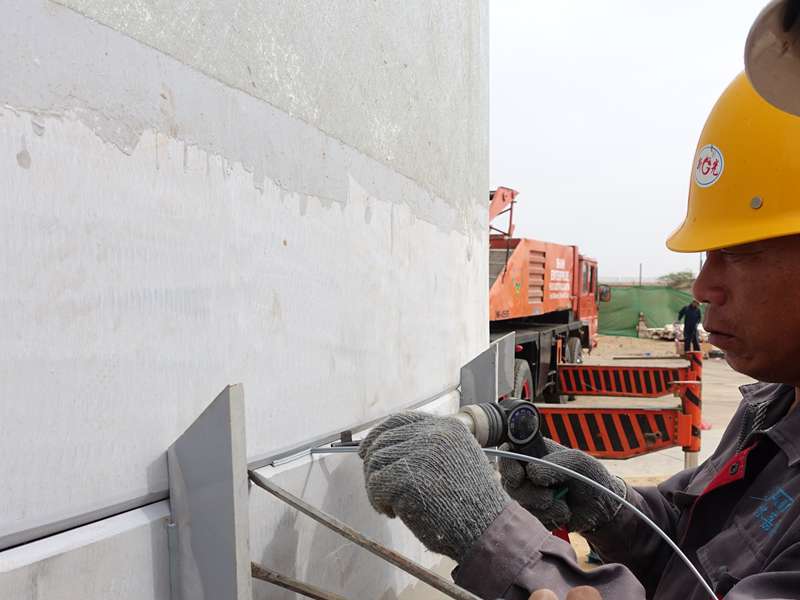

Figure 2: Dual Laminate piping system installed in a chemical processing plant, demonstrating its adaptability.

Technical Advantages of Dual Laminate Products

Choosing Dual Laminate Products offers a compelling suite of advantages over traditional metallic alloys or standalone FRP, addressing critical industrial challenges:

Unparalleled Corrosion Resistance: The primary advantage lies in the thermoplastic liner's inertness to a vast array of aggressive chemicals, including strong acids, alkalis, and solvents, even at elevated temperatures. This extends the lifespan of equipment exponentially compared to materials prone to pitting, crevice corrosion, or stress corrosion cracking.
Extended Service Life & Reduced LCC: By effectively resisting chemical attack, dual laminates provide a service life often exceeding 20-30 years, significantly reducing maintenance frequency, replacement costs, and operational downtime. This translates to a lower Total Life Cycle Cost (LCC).
High Structural Integrity: The FRP outer shell provides exceptional mechanical strength, allowing for high internal pressures, vacuum conditions, and resistance to external loads. This composite design offers a superior strength-to-weight ratio compared to metals.
Lightweight Construction: Being significantly lighter than equivalent metallic vessels, dual laminates reduce installation costs, simplify handling, and may require less substantial foundations.
Thermal Insulation Properties: FRP and thermoplastics inherently possess low thermal conductivity, offering excellent insulation. This can lead to energy savings in processes requiring temperature maintenance and enhances personnel safety by reducing external surface temperatures.
Design Flexibility: Dual laminates can be engineered into complex geometries, including large tanks, vessels with custom nozzles, and intricate piping systems, to meet specific process requirements.
Safety and Environmental Compliance: The robust construction and excellent chemical resistance minimize the risk of leaks and environmental contamination, contributing to a safer working environment and easier compliance with environmental regulations.

These advantages collectively position dual laminates as a preferred solution for demanding applications where reliability, longevity, and cost-effectiveness are critical factors.

Vendor Comparison and Selection Criteria

Selecting the right vendor for Dual Laminate Products is a critical decision that directly impacts project success, equipment performance, and long-term reliability. A robust evaluation process considers several key factors beyond initial cost.

Key Vendor Selection Criteria

Experience and Expertise: Look for vendors with a proven track record specifically in dual laminate fabrication, deep understanding of material compatibility, and engineering capabilities.
Certifications and Compliance: Verify adherence to international standards such as ISO 9001 for quality management, and relevant product design codes like ASME RTP-1 or national pressure vessel codes. Third-party certifications are a strong indicator of quality.
Fabrication Capabilities: Assess their ability to handle project scale, complexity, and specific manufacturing techniques required (e.g., large diameter filament winding, specialized liner welding).
Engineering and Design Support: A strong engineering team capable of FEA (Finite Element Analysis) and custom design solutions is invaluable for optimized performance.
Quality Control (QC) Procedures: Inquire about their in-house QC, including liner spark testing, hydrostatic testing, and material traceability.
After-Sales Support & Warranty: Evaluate their warranty commitments, technical support, and availability of field services for installation or maintenance.

Vendor Comparison Matrix (Illustrative)

Criteria	Vendor A	Vendor B	Our Offerings (JRAIN)
Years in Business (Dual Laminates)	10+	5+	15+ (Specialized)
Key Certifications	ISO 9001	ISO 9001	ISO 9001, ASME RTP-1 Compliant, Local Pressure Vessel Standards
Engineering & Design Capabilities	Standard Design	Basic Customization	Advanced FEA, Custom Engineering, Process Optimization
Quality Control & Testing	Standard In-house	Basic Inspections	Comprehensive NDT, Hydrostatic, Spark Test, Material Traceability
Warranty Period	1 Year	1-2 Years	2-5 Years (Project Dependent)
Customization Flexibility	Limited	Moderate	Extensive (Materials, Geometry, Integration)

Choosing a vendor with robust engineering, quality control, and after-sales support ensures the longevity and performance of your Dual Laminate Products investment.

Customized Solutions with Dual Laminate Products

One of the most significant advantages of Dual Laminate Products is their inherent flexibility in customization. Unlike standardized metallic components, dual laminates can be engineered and fabricated to meet highly specific process parameters, challenging geometries, and unique operational demands. This bespoke approach ensures optimal performance and seamless integration into complex industrial systems.

Tailoring Solutions to Specific Needs:

Liner Material Selection: The choice of thermoplastic liner (e.g., PVC, PP, PVDF, ECTFE, FEP) is driven by the specific chemical environment, temperature range, and purity requirements. This allows for precise chemical compatibility for virtually any corrosive media.
FRP Resin and Reinforcement: The structural FRP layer can be customized using various resins (e.g., Isophthalic, Vinylester, Epoxy) and glass fiber configurations (chopped strand, woven roving, filament wound) to achieve required mechanical strengths, temperature resistance, and fire retardancy.
Geometric Design and Dimensions: From large-diameter storage tanks and tall absorption towers to intricate piping networks and custom ducting, dual laminates can be designed and fabricated in virtually any shape or size, including complex nozzles, internal baffles, and support structures.
Integration of Accessories: Customization extends to the integration of fittings, flanges, manways, agitator supports, instrumentation nozzles, and other accessories, all designed to maintain the integrity of both the liner and the structural shell.
Thermal and Pressure Rating: Each dual laminate product is engineered for specific internal/external pressure and vacuum ratings, as well as precise operating temperature ranges, ensuring safety and performance under actual process conditions.

Our engineering team collaborates closely with clients, leveraging advanced CAD software and Finite Element Analysis (FEA) to validate designs, optimize material usage, and predict long-term performance. This ensures that every Dual Laminate Product is a perfectly tailored solution, not just an off-the-shelf component.

Application Case Studies: Proving the Value of Dual Laminate Products

Real-world applications best demonstrate the superior performance and economic benefits of Dual Laminate Products. Here are a few examples showcasing their impact:

Case Study 1: Hydrochloric Acid Storage in Petrochemical Facility

Problem: A major petrochemical producer faced recurring corrosion issues with their rubber-lined steel tanks used for concentrated hydrochloric acid (35% HCl) storage, leading to frequent shutdowns for lining repair and safety concerns. Temperatures occasionally reached 70°C (158°F).

Solution: We engineered and fabricated a series of large-diameter Dual Laminate Products storage tanks (PP/FRP), with a 50mm thick polypropylene (PP) liner for excellent HCl resistance at elevated temperatures, backed by a robust Vinylester FRP structural shell. Custom nozzles and manways were integrated.

Outcome: The new dual laminate tanks have been in continuous service for over 10 years without any corrosion-related incidents or unscheduled maintenance. This resulted in a significant reduction in operational costs, enhanced safety protocols, and improved production reliability for the client. The projected lifespan far exceeds that of the previous steel tanks.

Case Study 2: Bleach Mixer-Reactor in Pulp & Paper Mill

Problem: A pulp and paper mill required a new mixer-reactor for their chlorine dioxide bleaching stage, a highly aggressive environment that rapidly degraded stainless steel and even some high-end alloys. The vessel needed to withstand ClO2, caustic, and acidic conditions concurrently.

Solution: We provided a custom-designed dual laminate mixer-reactor, featuring an ECTFE (Ethylene Chlorotrifluoroethylene) liner for its exceptional resistance to strong oxidizers and a Vinylester FRP structure. The design incorporated specific internal baffles and an agitator support tailored to the process.

Outcome: The dual laminate reactor has demonstrably outperformed previous material choices, exhibiting no signs of corrosion or material degradation after 7 years of continuous operation. The mill reported consistent product quality due to the inert contact surface and avoided costly downtimes associated with equipment failure, optimizing their bleaching process efficiency.

Figure 3: Custom-engineered Dual Laminate storage vessel showcasing integration of nozzles and support structures.

: Trustworthiness - FAQs, Lead Time, Warranty & Support

Frequently Asked Questions (FAQs)

Q: What are Dual Laminate Products and how do they differ from standard FRP?

A: Dual Laminate Products combine a thermoplastic liner (e.g., PP, PVDF) for chemical resistance with an FRP outer shell for structural strength. Standard FRP typically uses a resin-rich internal layer for chemical resistance, which may not be suitable for all highly aggressive or hot chemical services where specific thermoplastic inertness is required.

Q: What is the typical service life of dual laminate equipment?

A: With proper design, material selection, and maintenance, Dual Laminate Products typically offer a service life of 20 to 30 years, significantly exceeding many traditional material alternatives in corrosive applications.

Q: Are dual laminates suitable for high-temperature applications?

A: Yes, depending on the thermoplastic liner and FRP resin system chosen. Fluoropolymer liners like PVDF, ECTFE, and FEP can handle continuous operating temperatures up to 140-160°C (284-320°F), making them suitable for many high-temperature corrosive processes.

Q: How do dual laminate products compare in cost to exotic alloys?

A: While the initial capital cost can be comparable or sometimes higher than some standard alloys, the significantly extended service life, reduced maintenance, and lower replacement frequency of dual laminates often result in a much lower Total Life Cycle Cost (TLC) compared to exotic alloys.

Lead Time & Fulfillment Details

Lead times for Dual Laminate Products are project-specific, depending on size, complexity, material availability, and current production schedules. Typically, standard vessels or piping sections can range from 8 to 16 weeks from design approval to factory shipment. Highly customized or very large projects may require 20 weeks or more. We employ robust project management methodologies to ensure transparent communication, on-time delivery, and efficient logistics for global fulfillment.

Warranty Commitments

We stand behind the quality and performance of our Dual Laminate Products with comprehensive warranty provisions. Our standard warranty covers manufacturing defects and material failures under normal operating conditions for a period of 2 to 5 years, depending on the product type and specific application. Extended warranty options are available for critical applications, demonstrating our confidence in the durability and reliability of our solutions.

Customer Support Information

Our commitment extends beyond delivery. We offer dedicated customer support, including technical assistance, installation guidance, and troubleshooting. Our team of experienced engineers and field service technicians is available to ensure the successful deployment and long-term operation of your dual laminate equipment. For inquiries, technical support, or to discuss your specific project needs, please contact us via the details provided on our official website.

Conclusion

Dual Laminate Products represent a sophisticated and highly effective solution for industries battling severe corrosion and seeking extended operational lifespans for their critical process equipment. By meticulously combining the chemical inertness of advanced thermoplastics with the structural resilience of Fiber Reinforced Polymer, these products offer an unparalleled balance of performance, safety, and long-term cost-effectiveness.

As industrial processes become more demanding and environmental regulations more stringent, the adoption of dual laminates will continue to grow, safeguarding assets, ensuring operational continuity, and contributing to safer, more sustainable industrial practices. For B2B decision-makers and engineers, investing in dual laminate technology is an investment in durable infrastructure and predictable, reliable operations.

References

American Society of Mechanical Engineers (ASME). "ASME RTP-1, Reinforced Thermoset Plastic Corrosion Resistant Equipment." 2017.
American Society for Testing and Materials (ASTM). "ASTM D3299/D3299M-18, Standard Specification for Filament-Wound Fiberglass (Glass-Fiber-Reinforced Thermosetting-Resin) Pressure Vessels." 2018.
Mallinson, J. "Corrosion-Resistant Plastic Composites in Process Plant Design." McGraw-Hill Professional, 1988.
International Organization for Standardization (ISO). "ISO 9001:2015, Quality management systems – Requirements." 2015.
Ashby, M. F., & Jones, D. R. H. "Engineering Materials 1: An Introduction to Properties, Applications and Design." Butterworth-Heinemann, 2012.
