Winding Machines for Pipes & Tanks: field notes from the shop floor

If you’ve walked a filament-winding shop lately, you can feel it: demand’s strong, specs are stricter, and uptime is everything. JRain’s Winding Machines for Pipes & Tanks have been popping up in water, chemical, and desal projects I’ve followed—partly because they span pipes DN50–DN4000 mm (with or without sand) and tanks/vessels DN500–DN25000 mm. To be honest, that range covers most real-world infrastructure needs.

What’s driving adoption

Three trends keep coming up in my notebook: corrosion-proofing (chlorides, brine, acids), lighter installs (fewer cranes, faster line work), and standards-driven compliance. Utilities want documented performance—ISO 14692 for GRP piping, ASME RTP-1 or EN 13121 for tanks. Surprisingly, many customers say the deciding factor isn’t raw speed; it’s repeatability and traceable QA.

How the process actually runs

Materials: E-glass roving, chopped strand mat, optional quartz sand (for stiffness), and resin systems—typically polyester, vinyl ester, or epoxy. Methods: controlled fiber wet-out, helical/hoop winding on a steel mandrel, sand dosing for pipe cores, then cure (ambient or oven). QC gates matter:

• Hydrostatic/burst: ASTM D1599; long-term regression: ASTM D2992.
• Ring stiffness: ISO 9969; glass content: ISO 1172.
• Hardness: ASTM D2583 (Barcol); chemical resistance: ASTM C581.

In practice, factories report service life ≈25–50 years (medium and UV protection can stretch that longer). It’s not magic—just consistent fiber angles, resin cure, and tight process records.

Typical specs (machine capability)

Where they’re used (and why)

• Potable and seawater lines, desal brine, wastewater force mains.
• Chemical storage: NaOCl, HCl, fertilizers—select resin/liner accordingly.
• Firewater networks, mining slurries, cooling water, biogas digesters.

Advantages people mention: corrosion immunity, high stiffness-to-weight (especially with sand core pipes), fast site handling, and predictable QA data sets. One maintenance lead told me, “Installing FRP at night with a small crew felt… doable.” That’s saying something.

Customization options

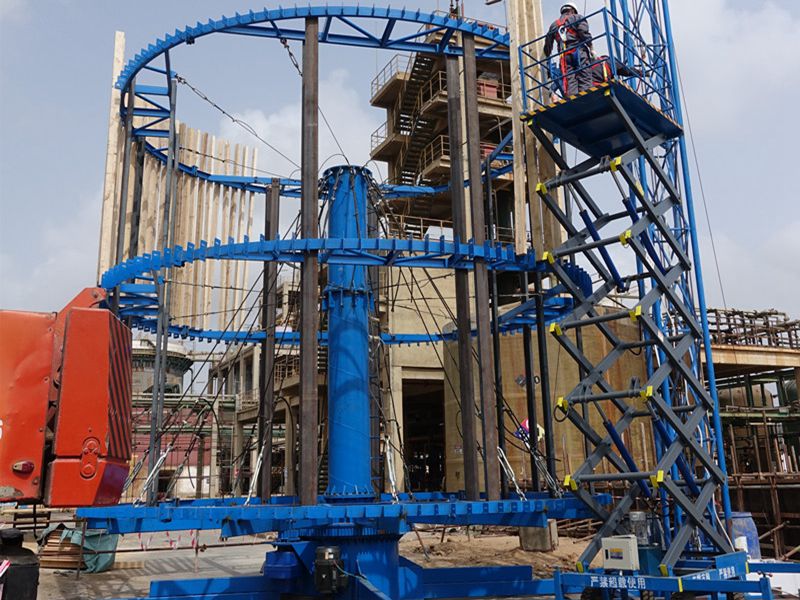

JRain configures Winding Machines for Pipes & Tanks with recipe libraries, resin bath temperature control, multi-station creels, mandrel length extensions, oven cure, in-line sanding/lining, laser diameter checks, and data logging for audits. Origin: No. 1289, Yingbin South Street, Jizhou District, Hengshui, Hebei, China.

Vendor landscape (quick take)

Case snapshots

Desal outfall, MENA: DN2400 mm pipe with sand core. Factory witnessed ASTM D2992 regression; installed with gasketed joints, reported Agri-chem tanks, LATAM: DN8000–12000 mm VE-lined vessels; QA per EN 13121, Barcol checks logged to the batch.

Final thought: specs win bids, but service wins repeat business. Actually, buyers keep pointing to start-up assistance and operator training as the quiet differentiators.

Authoritative citations

1. ISO 14692: Petroleum and natural gas industries — Glass-reinforced plastics (GRP) piping.
2. ASTM D2992: Standard Practice for Obtaining Hydrostatic Design Basis for FRP Pipe.
3. ASTM D1599: Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe.
4. EN 13121: GRP tanks and vessels for use above ground.
5. ASME RTP-1: Reinforced Thermoset Plastic Corrosion-Resistant Equipment.
6. AWWA C950: Fiberglass Pressure Pipe, for Water Supply.
7. ASTM C581: Chemical Resistance of Thermosetting Resins Used in FRP.
