The Advanced Engineering of FRP Pipe and Tank Manufacturing

In modern industrial infrastructure, the demand for high-performance, corrosion-resistant, and durable storage and conveyance solutions is paramount. This demand is increasingly met by Fiber Reinforced Polymer (FRP) composites, which offer superior strength-to-weight ratios and exceptional chemical resistance compared to traditional materials like steel or concrete. Central to the efficient and precise manufacturing of these critical FRP components are advanced Winding Machines for Pipes & Tanks. These sophisticated systems are the backbone of producing FRP pipes, pressure vessels, storage tanks, and other cylindrical or conical structures used across a multitude of industries. They enable the automated, precise application of resin-impregnated fibers onto a rotating mandrel, ensuring optimal material distribution and structural integrity.

The technology behind these machines is continuously evolving, integrating innovations in automation, control systems, and material handling to deliver products that meet increasingly stringent industry standards and application demands. This article delves into the intricacies of these indispensable machines, exploring their operational principles, technical specifications, diverse applications, and the competitive landscape of their manufacturing.

Industry Trends and Market Dynamics

The global market for FRP composites is experiencing robust growth, driven by increasing infrastructure development, stringent environmental regulations, and the rising adoption of lightweight materials in sectors such as oil & gas, chemical processing, water treatment, and marine. This growth directly fuels the demand for high-efficiency, precision-engineered Winding Machines for Pipes & Tanks. Key trends shaping this sector include:

• Automation and Digitization: A move towards fully automated systems with advanced PLC controls, SCADA integration, and real-time process monitoring to enhance precision, reduce labor costs, and improve reproducibility.
• Smart Manufacturing (Industry 4.0): Integration of IoT sensors, data analytics, and AI for predictive maintenance, optimized production schedules, and improved material utilization.
• Sustainable Materials: Growing interest in using bio-based resins and recycled fibers, necessitating machines capable of handling a wider range of composite materials effectively.
• Larger Diameters and Lengths: Demand for machines capable of producing increasingly larger diameter pipes and tanks for municipal water infrastructure, industrial storage, and offshore applications.
• Customization and Versatility: Manufacturers are seeking machines that offer greater flexibility to produce a diverse range of product geometries and wall thickness variations without significant retooling.

These trends highlight a market pushing for greater efficiency, higher quality output, and more flexible manufacturing solutions, all of which are directly addressed by advancements in Winding Machines for Pipes & Tanks technology.

Core Technology and Manufacturing Process Flow

The manufacturing process of Winding Machines for Pipes & Tanks themselves involves a blend of precision engineering and robust construction to ensure their long service life and high performance. Similarly, understanding the process flow of FRP pipe and tank production using these machines is crucial.

Manufacturing Process of the Winding Machines

• Design and Engineering: Utilizing CAD/CAE software (e.g., SolidWorks, ANSYS) for structural design, stress analysis, and motion simulation. This ensures optimal machine kinematics and structural integrity.
• Material Selection: High-grade structural steel (e.g., ASTM A36, S355JR) for the main frame, precision-ground hardened steel for critical moving parts (e.g., mandrels, bearing shafts), and industrial-grade aluminum alloys for lighter, high-speed components.
• Component Manufacturing:
  • Casting & Forging: For heavy-duty components like gearbox housings, large gears, and bearing blocks to ensure superior mechanical properties and wear resistance.
  • CNC Machining: Precision milling, turning, and grinding for critical parts (e.g., machine beds, carriages, spindle housings) to achieve tight tolerances (typically ±0.02 mm) essential for smooth operation and accuracy.
  • Welding: Robotic or highly skilled manual welding conforming to AWS D1.1 standards for the main frame assembly, followed by stress relieving to prevent distortion.
• Surface Treatment and Finishing: Sandblasting, priming, and industrial-grade epoxy painting for corrosion resistance and durability in harsh industrial environments.
• Assembly and Integration: Meticulous assembly of mechanical, electrical, and control systems. This includes servo motors, planetary gearboxes, HMI touchscreens, PLC controllers (e.g., Siemens, Allen-Bradley), and resin delivery systems.
• Testing and Quality Assurance:
  • Dimensional Accuracy: Verification of all critical dimensions using laser trackers and CMMs.
  • Functional Testing: Dry run and wet run tests under various load conditions to confirm operational stability, winding pattern accuracy, and resin impregnation efficiency.
  • Safety Compliance: Adherence to international safety standards such as ISO 12100 and ANSI B11.0.
  • Certifications: Ensuring compliance with relevant industry standards like ISO 9001 for quality management and CE marking for European markets.

The typical service life of a well-maintained winding machine can exceed 15-20 years, a testament to the robust manufacturing processes and material quality.

FRP Pipe and Tank Production Process using Winding Machines

Here is a schematic representation of the FRP winding process:

Figure 1: Typical Filament Winding Process Schematic

• Mandrel Preparation: A precisely machined steel mandrel, often coated with a release agent, forms the inner diameter of the pipe or tank. For large tanks, collapsible mandrels are common.
• Liner Application (Optional): For chemical resistance, a corrosion-resistant liner (e.g., C-glass veil, specific resin systems) is often applied directly to the mandrel via spray-up or hand lay-up before winding.
• Resin Impregnation: Continuous fiber rovings (e.g., E-glass, carbon fiber, aramid fiber) are pulled through a resin bath where they are thoroughly impregnated with thermosetting resins (e.g., polyester, vinyl ester, epoxy). The resin bath typically controls resin content and temperature.

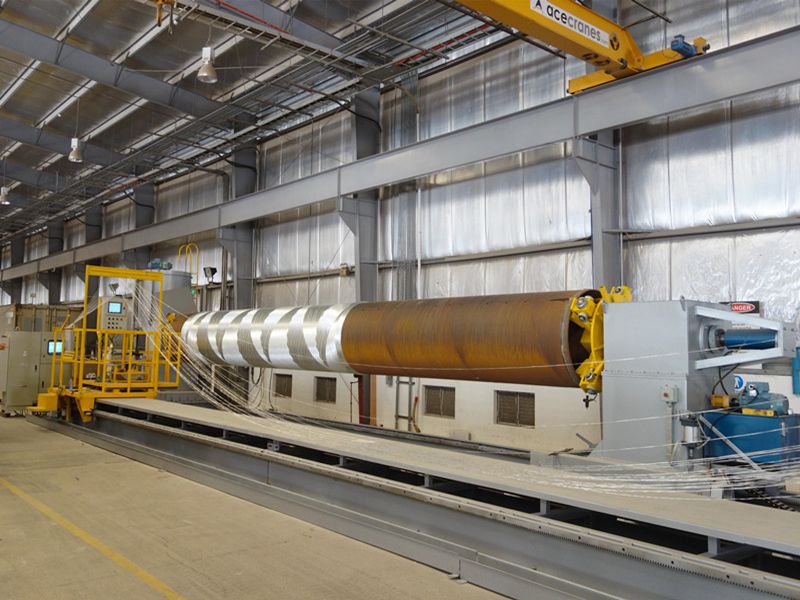

• Filament Winding: The resin-impregnated rovings are guided by a traverse system onto the rotating mandrel. The winding machine's multi-axis control precisely dictates the winding angle (helical, hoop, or chop-hoop) and tension, building up the required wall thickness layer by layer. This process is critical for achieving anisotropic properties tailored to specific load conditions.
• Curing: Once winding is complete, the part on the mandrel undergoes a curing process. This can be at ambient temperature or in an oven with controlled heat, depending on the resin system, to cross-link the polymer matrix and achieve full mechanical strength.
• Demolding: After curing, the finished FRP pipe or tank is carefully removed from the mandrel. For large structures, this may involve hydraulic demolding systems or the disassembly of collapsible mandrels.
• Finishing and Testing: The product undergoes trimming, sanding, and any necessary secondary bonding (e.g., attaching nozzles, flanges). Non-destructive testing (NDT) such as ultrasonic inspection or hydrostatic pressure testing (conforming to ASTM D2996/D2997, ISO 14692) ensures structural integrity and leak-tightness.

Advantages in Typical Application Scenarios

FRP pipes and tanks produced by advanced winding machines offer distinct advantages in various industries:

• Petrochemical Industry: Excellent corrosion resistance to a wide range of aggressive chemicals, including acids, alkalis, and solvents, leading to significantly extended service life compared to metallic alternatives. This minimizes costly downtime and maintenance.
• Water Supply & Drainage: Lightweight nature facilitates easier transportation and installation, reducing labor and equipment costs. Smooth inner surfaces (low Manning's roughness coefficient) reduce friction, leading to energy saving through lower pumping requirements.
• Metallurgy and Mining: Resistance to abrasive slurries and corrosive environments, making them ideal for conveying process water, tailings, and chemical reagents.
• Power Generation: Used in cooling water systems, flue gas desulfurization (FGD) systems, and water treatment plants due to their superior corrosion and erosion resistance in demanding conditions.

Technical Specifications and Performance Parameters

Modern Winding Machines for Pipes & Tanks are engineered with advanced features to ensure high precision, efficiency, and versatility. Below are typical technical specifications for a high-performance filament winding machine.

Key Product Specifications

These parameters are crucial for engineers and decision-makers in selecting the appropriate winding machine to meet specific production goals and quality requirements. The precision offered by multi-axis control, often leveraging advanced servo motors and encoders, ensures that fiber tension, winding angle, and resin content are meticulously controlled, leading to superior product performance and consistent quality, compliant with international standards like ISO 14692 (Petroleum and natural gas industries — Glass-reinforced plastics (GRP) piping).

Application Scenarios and Technical Advantages

The versatility and robust performance of Winding Machines for Pipes & Tanks make them indispensable across a broad spectrum of industrial applications.

Key Application Areas

• Chemical Processing: Production of tanks and pipelines for highly corrosive acids, bases, and solvents where metallic options rapidly degrade. Examples include storage for concentrated sulfuric acid, hydrochloric acid, or sodium hydroxide.
• Oil & Gas Industry: Manufacturing of downhole tubing, high-pressure flowlines, subsea components, and storage tanks for crude oil, natural gas, and produced water, offering excellent resistance to sour gas (H2S) and CO2.
• Water and Wastewater Treatment: Production of large-diameter pipes for potable water distribution, sewage collection, reverse osmosis (RO) pressure vessels, and clarifier tanks. The non-corrosive nature of FRP ensures water quality and reduces maintenance.
• Food & Beverage: Storage tanks for potable water, various liquids, and ingredients, benefiting from FRP's inertness and ease of cleaning, often complying with FDA standards for indirect food contact.
• Marine and Offshore: Piping systems for ballast water, fire suppression, and drainage on ships and offshore platforms, where lightweight, corrosion-resistant materials are critical for structural integrity and reduced maintenance in saline environments.
• Aerospace & Defense: Manufacturing of lightweight, high-strength composite components like rocket motor casings and specialized pressure vessels.

Technical Advantages of FRP Products

• Superior Corrosion Resistance: Inherently resistant to a vast array of chemicals, salts, and atmospheric corrosion, unlike steel, which requires extensive coatings and cathodic protection. This translates to significantly lower lifecycle costs and prolonged asset integrity.
• High Strength-to-Weight Ratio: FRP materials offer comparable or superior mechanical strength to steel at a fraction of the weight, simplifying transportation, installation, and reducing structural support requirements. For instance, an FRP pipe can be 1/10th the weight of a steel pipe of similar strength.
• Excellent Flow Characteristics: Smooth internal surfaces (roughness coefficient typically 0.009-0.010) minimize friction losses, leading to lower pumping energy requirements and significant energy saving over the operational lifetime, often reducing pump sizes and operational costs by up to 30%.
• Design Flexibility: The winding process allows for tailored anisotropic properties, meaning engineers can design specific fiber orientations to meet precise stress profiles and operational demands, optimizing material usage and performance. This includes varying wall thickness along the length or around circumference.
• Low Maintenance: No need for painting, cathodic protection, or frequent inspections for corrosion. This drastically reduces operational expenditures.
• Thermal Insulation: FRP has lower thermal conductivity than metals, contributing to better insulation properties and reduced heat loss/gain for contained fluids.

Advanced Features and Customization Options

The demand for bespoke manufacturing solutions in the composite industry has led to significant advancements in the customization capabilities of Winding Machines for Pipes & Tanks. Manufacturers increasingly seek machines that can adapt to unique product specifications and evolving material technologies.

Key Advanced Features

• Closed-Loop Tension Control: Automated systems monitor and adjust fiber tension in real-time, ensuring uniform fiber distribution and consistent mechanical properties throughout the composite structure, critical for high-pressure applications.
• Automated Resin Impregnation Systems: Precision metering and mixing systems for multi-component resins, ensuring optimal resin-to-fiber ratio and minimizing waste. Features like temperature control and degassing improve resin quality and reduce voids.
• Integrated Cutting and Chopping Stations: For chop-hoop winding, automated systems can cut continuous rovings into specified lengths, enhancing process efficiency and enabling hybrid winding patterns.
• Advanced Software Interface: User-friendly HMI with recipe management, real-time diagnostics, fault alarms, and remote access capabilities for monitoring and troubleshooting. Simulation software allows for virtual prototyping of winding patterns.
• Mandrel Heating/Cooling: Integrated systems for temperature control of the mandrel, crucial for optimizing resin cure cycles and improving demolding efficiency, especially for large diameter products.

Figure 2: Multi-axis control system for advanced winding patterns

Customization Capabilities

Leading manufacturers of winding machines offer extensive customization to meet specific client needs:

• Mandrel Size and Type: Machines can be engineered to accommodate extraordinary mandrel diameters (e.g., up to 10 meters) or lengths, as well as specialized mandrel types like collapsing, expandable, or removable segmented mandrels.
• Axis Configuration: From standard 3-axis pipe winders to complex 6-axis or 8-axis machines for highly convoluted geometries such as elbows, tees, or domed ends of pressure vessels.
• Multi-Spindle Systems: For high-volume production of smaller diameter pipes, multi-spindle machines increase throughput by winding multiple parts simultaneously.
• Integrated Curing Solutions: Custom solutions can include integrated curing ovens, infrared heating arrays, or UV curing systems directly linked to the winding machine for inline processing.
• Material Handling Systems: Automated creel systems for fiber spools, resin mixing and pumping units, and take-off systems for finished products can be integrated for seamless operation.
• Software Customization: Tailored winding pattern generation software to optimize fiber placement for specific load cases, reduce material usage, and predict mechanical performance.

Vendor Comparison and Market Landscape

The market for Winding Machines for Pipes & Tanks is diverse, with several key players offering a range of technologies and services. Choosing the right vendor is critical and depends on specific project requirements, budget, and desired level of automation and support.

Key Factors for Vendor Evaluation:

• Technological Sophistication: Control system, number of axes, winding speed, accuracy.
• Customization Capability: Ability to tailor machines for unique product dimensions or complex geometries.
• After-Sales Support & Service: Availability of spare parts, technical assistance, training, and maintenance contracts.
• Industry Experience & Reputation: Track record in the relevant application area, client testimonials, and certifications.
• Cost & ROI: Initial investment versus long-term operational efficiency and product quality.

Comparative Overview (Illustrative)

This comparison highlights that while some vendors offer cutting-edge technology and comprehensive support at a premium, others provide reliable, cost-effective solutions for more standard applications. Strategic evaluation is essential to align vendor capabilities with long-term business objectives.

Application Case Studies & Customer Success

The real-world application of Winding Machines for Pipes & Tanks demonstrates their transformative impact on industrial projects.

Case Study 1: Large-Diameter Water Transmission Pipeline

A major municipal water authority in the Middle East required a new high-capacity water transmission pipeline spanning 150 km. Traditional steel pipes faced significant challenges due to soil corrosivity and high installation costs.

• Solution: Utilization of advanced Winding Machines for Pipes & Tanks capable of producing DN 3000 mm (118 inch) FRP pipes with a pressure rating of PN10 bar. The chosen machines featured 6-axis control and integrated quality monitoring systems.
• Results: The project delivered a pipeline with superior corrosion resistance, ensuring a projected service life of over 50 years with minimal maintenance. The lightweight nature of the FRP pipes reduced transportation and installation costs by an estimated 25% compared to steel, and the smooth bore led to significant energy savings in pumping operations. Customer feedback highlighted the exceptional precision of the winding process, resulting in consistent pipe wall thickness and mechanical properties across all segments.

Case Study 2: Chemical Storage Tank Farm Expansion

A leading chemical manufacturer needed to expand its storage capacity for aggressive industrial chemicals, including concentrated acids and caustic solutions. Space constraints and strict safety regulations were primary concerns.

• Solution: Implementation of a custom-designed winding machine optimized for fabricating large FRP storage tanks (up to 200 m³ capacity) with dual-laminate construction (e.g., PVC/FRP or PP/FRP) for enhanced chemical resistance. The machine featured an advanced resin mixing and delivery system and precise winding angle control to build structural integrity for tall, slender tanks.
• Results: The custom machine enabled the rapid and cost-effective production of tanks that met stringent chemical resistance requirements and international safety standards (e.g., ASTM D3299). The project was completed ahead of schedule, with the FRP tanks demonstrating excellent long-term performance and chemical compatibility. The client particularly praised the winding machine’s ability to produce consistent quality, significantly reducing rejection rates and ensuring regulatory compliance.

Figure 3: Fabricated FRP pipes and tanks ready for deployment

Trustworthiness and Support: FAQ, Lead Time, Warranty, and After-Sales

Frequently Asked Questions (FAQ)

Lead Time and Fulfillment

The typical lead time for a standard Winding Machines for Pipes & Tanks ranges from 12 to 20 weeks, depending on the machine's complexity and customization requirements. This timeframe includes design finalization, component procurement, manufacturing, assembly, and rigorous factory acceptance testing (FAT). For highly customized solutions, lead times may extend. We maintain transparent communication throughout the entire order fulfillment process, providing regular progress updates.

Warranty Commitments

We stand behind the quality and reliability of our equipment. All our winding machines come with a standard 12-month warranty from the date of commissioning or 18 months from shipment, whichever comes first. This warranty covers manufacturing defects and component failures under normal operating conditions. Extended warranty options and service contracts are available to provide long-term peace of mind.

Customer Support and After-Sales Service

Our commitment to our clients extends far beyond the sale. We offer comprehensive after-sales support designed to ensure the continuous and efficient operation of your winding machines. Our services include:

• Technical Assistance: 24/7 remote technical support via phone, email, and video conferencing.
• On-Site Support: Skilled technicians available for on-site troubleshooting, repairs, and preventative maintenance anywhere in the world.
• Spare Parts Management: A readily available inventory of critical spare parts to minimize downtime.
• Upgrades and Modernization: Services to upgrade existing machines with the latest technology, extending their operational life and enhancing performance.
• Performance Optimization: Consulting services to help clients optimize winding patterns, material selection, and process parameters for specific applications.

Conclusion and Future Outlook

The advancements in Winding Machines for Pipes & Tanks represent a critical enabler for the widespread adoption of FRP composites in demanding industrial applications. These machines combine precision engineering, advanced automation, and robust construction to deliver high-quality, durable, and cost-effective solutions for fluid conveyance and storage. As industries continue to seek lightweight, corrosion-resistant, and sustainable alternatives to traditional materials, the technology behind filament winding will only grow in importance and sophistication.

The future will see further integration of Artificial Intelligence and Machine Learning for predictive maintenance, adaptive process control, and generative design of winding patterns. Customization will become even more seamless, allowing manufacturers to quickly pivot to new product designs and material combinations. Investing in high-quality winding machines is not just an equipment purchase; it's an investment in sustainable, efficient, and advanced manufacturing capabilities that will define the infrastructure of tomorrow.

Citations

1. ASTM International. (2020). D2996/D2996M-20, Standard Specification for Filament-Wound Fiberglass (Glass-Fiber-Reinforced Thermosetting-Resin) Pipe. ASTM International, West Conshohocken, PA.
2. ISO. (2017). ISO 14692-1:2017, Petroleum and natural gas industries — Glass-reinforced plastics (GRP) piping — Part 1: Vocabulary, symbols, applications and materials. International Organization for Standardization.
3. Mallick, P. K. (2007). Fiber-Reinforced Composites: Materials, Manufacturing, and Design (3rd ed.). CRC press.
4. Gardner, J. (2018). Advanced Composites in Industrial Applications. CompositesWorld Magazine.
5. Modern Plastics India. (2021). Global FRP Composites Market Projected for Strong Growth.
